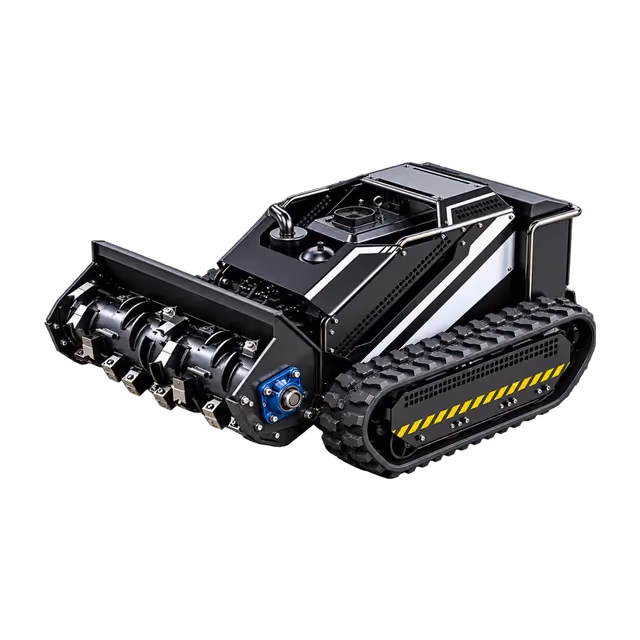

Mulcher Mower1000 mm water-cooled diesel remote mulcher
A tracked, remotely controlled machine for mowing and vegetation clearing. A hydraulic lift adjusts the working head while the diesel engine supplies the cutting system.
Compare the working width with your vegetation and the access available on site.
Water-cooled diesel power
Confirm the quoted engine, rated output and service parts before ordering.
Remote hydraulic head lift
Adjust the working head by remote control. The supplied sheet lists a cutting-height range of 5–400 mm.
Tracked electric drive
Two electric drive motors move the tracked chassis. The supplied track-width figure is 180 mm.
TECHNICAL REFERENCE
Dimensions, control and working specifications.
Machine size (L × W × H)1900 × 1230 × 860 mm
Shipping crate (L × W × H)2150 × 1320 × 960 mm
Machine weight500–600 kg
Working width1000 mm
Mulcher Mower · supplied specification sheet
Working width
1000 mm
Power type
Water-cooled diesel engine
Remote control range
≤ 300 m
Working slope
≤ 45° (catalog limit)
Start system
Electric start
Cutting height
5–400 mm
Head lifting
Remote-controlled hydraulic adjustment
Power generation system
48 V
Track width
180 mm
Drive
Dual electric drive motors
Blade types
Toothed / horseshoe blades
Catalog working output
3000–4000 m²/h
Machine dimensions (L × W × H)
1900 × 1230 × 860 mm
Packing dimensions (L × W × H)
2150 × 1320 × 960 mm
Machine weight
500–600 kg
Display
LCD display
L × W × H1900×1230×860 mm
Confirm the setup before ordering
Measure access against the 1230 mm overall machine width, not just the 1000 mm working head. Check turning space, loading ramps and transport payload using the final supplied weight.
The sheet lists a working slope of ≤ 45° and output of 3000–4000 m²/h. Ground condition, vegetation density, travel direction and operating procedure affect actual work. Radio range depends on the environment.
Ask for the exact engine output, battery capacity, motor ratings, fitted blades and operating instructions in your quotation. Confirm suitable material with a current demonstration; the current sheet does not publish a maximum branch diameter.
The packing reference is 2150 × 1320 × 960 mm. Obtain the final supplied weight and packed gross weight before selecting loading equipment.
Choose a thumbnail or use the arrows. Request the exact configuration and a demonstration relevant to your material.
QUOTATION
Quote this Mulcher Mower for my site.
Include quantity, delivery country or port, vegetation type, stem diameter, access width and ground conditions. We will confirm the engine, cutting setup, packing and shipping details.
The supplied sheet describes mowing, vegetation clearing and branch shredding. Send photos and measured stem or branch diameters. Confirm the fitted blade set and suitable material with the quoted machine’s operating instructions.
Is 3000–4000 m²/h guaranteed?
No. This is the output listed in the supplied specification sheet. Site layout, material density, obstacles and working technique affect actual output. Ask for a trial in comparable conditions.
What documents and support should I request?
Ask for documents covering the exact configuration, operating instructions, maintenance schedule, warranty terms and a recommended spare-parts list. Confirm the available engine, drive and cutting-head parts in the quotation.
